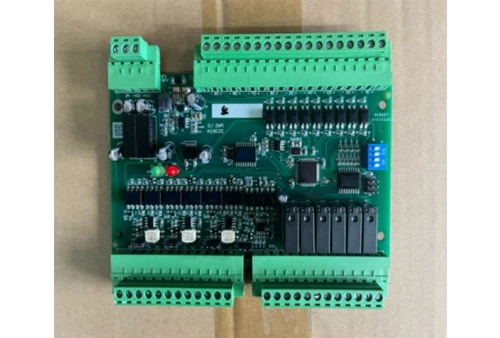

PCU

PCU

As a key component of the DC charging controller, the PCU module mainly realizes functions such as AC side sampling and control, charging module communication and cooling system control.

Buy PCU

Details of PCU

Feature 01

Realize communication with the charging management module;

Realize communication with the charging module;

Realize communication with the matrix control module;

Realize communication with the monitoring management unit;

Feature 02

Realize AC side feedback sampling and control;

Realize cooling fan system control;

Lightning protection, flooding, access control switch status detection;

Charging module power distribution control

Specification of PCU


Model Number PCU

1.Working power supply 9Vdc ~ 15Vdc

2.Switching output

DO1 ~ DO6: passive dry contact normally open output

Contact capacity: resistive load: AC 250V/5ADC 30V/5A

Inductive load: AC 250V/1.5ADC 30V/1.5A

3.Switching input

DI1 ~ DI9: passive dry contact input, module internal power drive

4.Communication port

1-way RS485 communication, 3-way CAN 2.0 communication
